Platform wagon

stl files to print on your own 3d printer

stl files: 14 , parts to print: 26

3D-printed Platform wagon

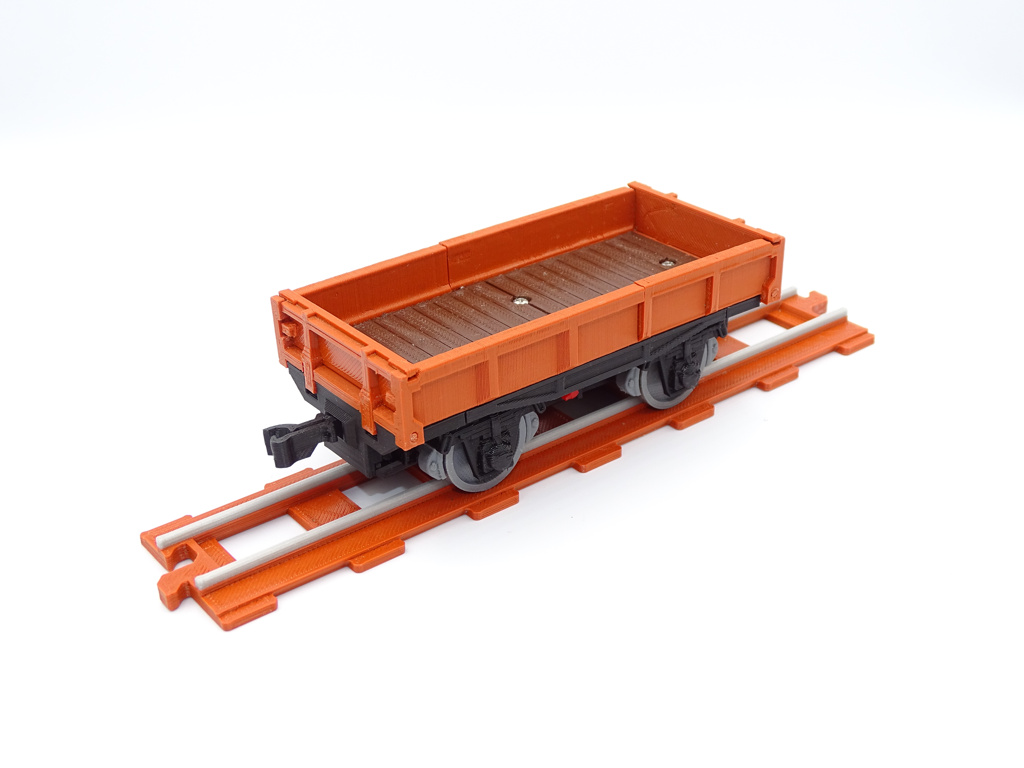

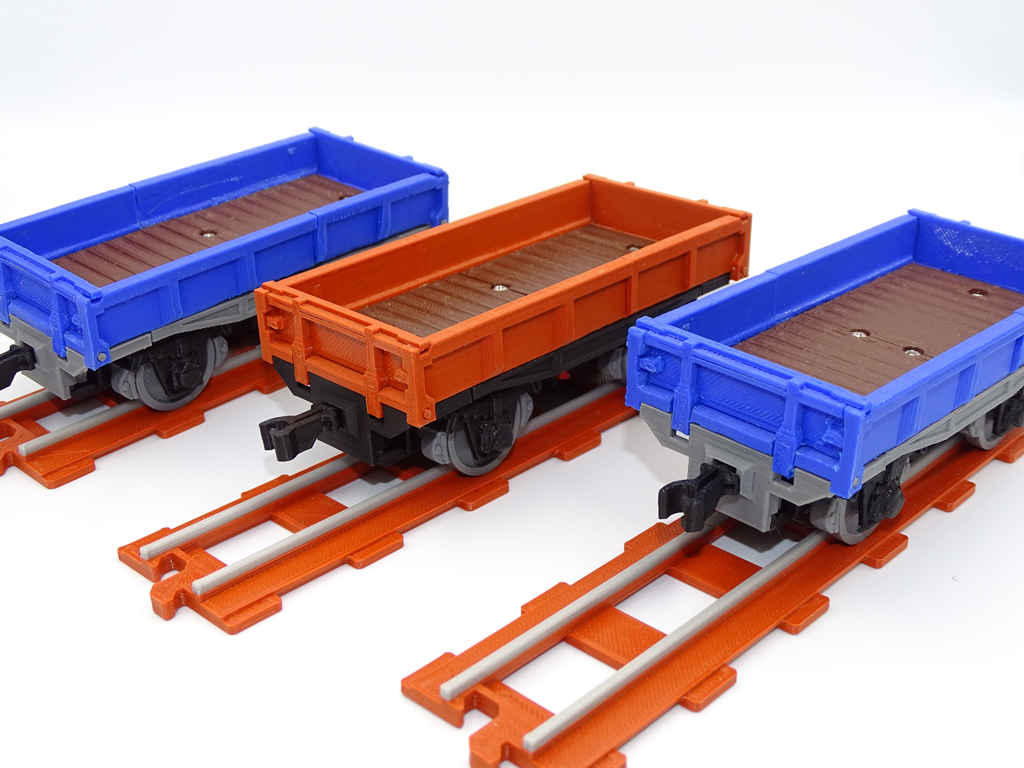

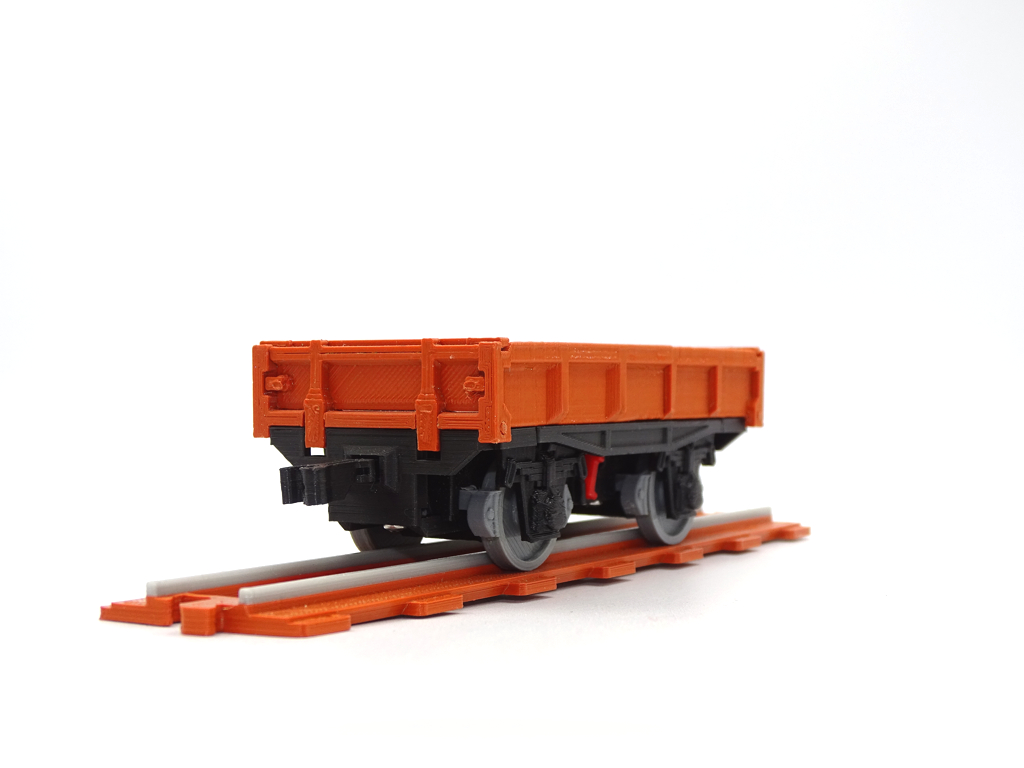

Model of a railway platform with low sides. This model fits popular brick figures and fits all our ship and train models.
Ready to print on nano 3D printers
(min. required printing area 80*80*75mm).
Easy to print - no need any supports, brims or raft.

Set the amount and get
the platform wagon stl files!

You can set the amount you want to pay!

USD Enter the amount above.

Before paying, make sure you have downloaded and tested our free model:
Shunting locomotive

After payment is confirmed you will receive an email from Printed Toys with download link.
This link will be active for 7 days from you payment, but you can download the files and store them locally for any length of time.



Platform wagon - Assembly manual

Needed parts or materials (suggested, you can use other matches parts)
  • 8 pieces M2.2x6.5 screw (DIN7981),
  • several short pieces of filament 1.75 mm for hinges,
  • cyanoacrylate glue (not essential but may be needed to glue the wheels to the axles).

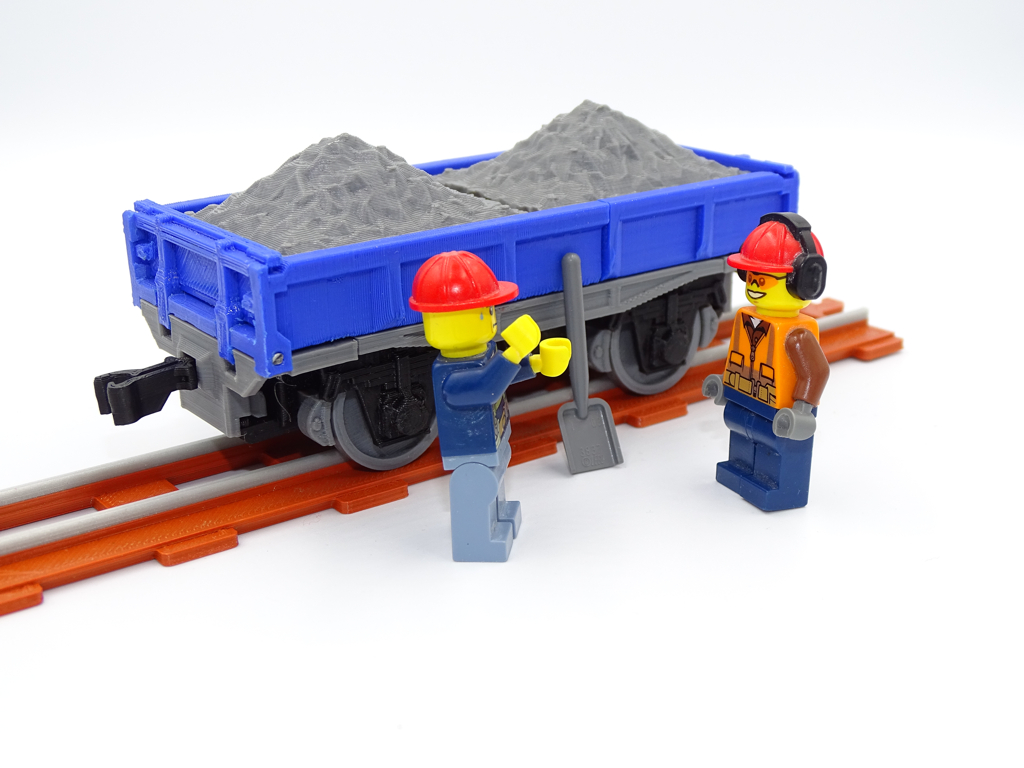

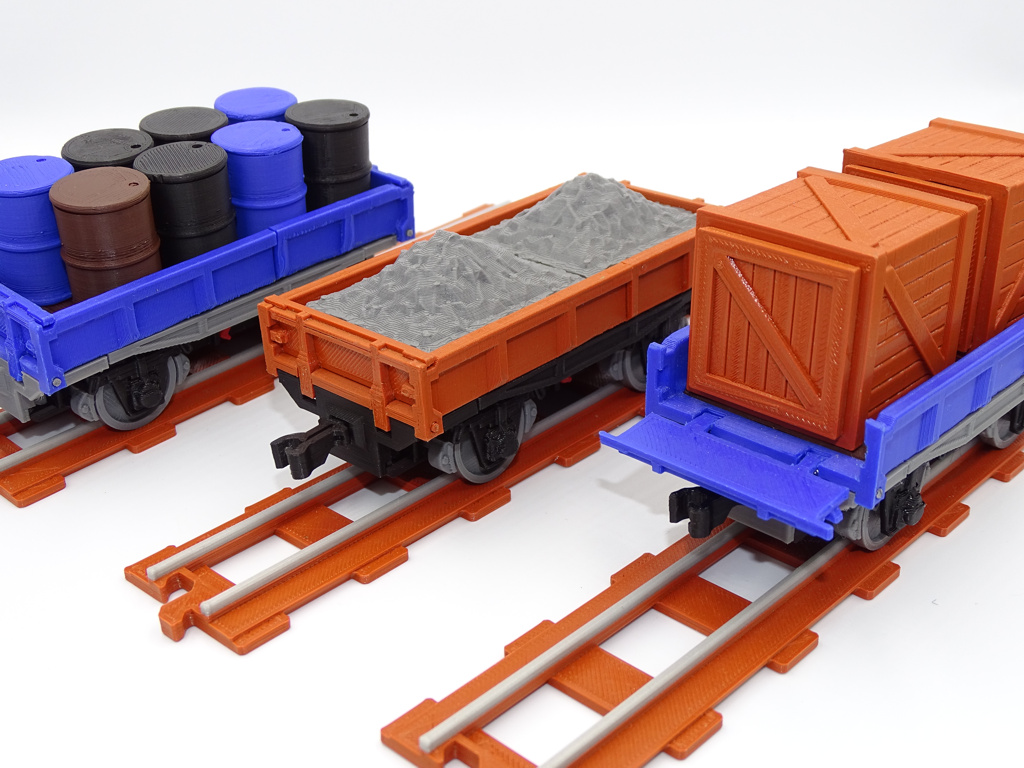

Wagon load

As a load for the coal wagon, you can use:

3D printing
  • We recommend using PLA filament, nozzle 0.4 mm and layer height 0.2 mm, but you can test other settings.
  • All files are in print-ready positions, you don't have to rotate it on your slicer.
  • The elements are easy to print and do not require the use of supports, brims or rafts (the only exception is axle.stl, which prints vertically, and for this we recommend a small brim).
  • Print all elements with 100% filling (the wagon runs better if it is a little heavier, the differences in time and filament consumption when printing with a small filling are not significant).
Assembling of parts
  • The sizes of the wheels and axles should match, but if they are too loose, try to stick them with glue. You can also slightly chamfer the ends of the axle with a regular sharpener.
    If the axle is too thick, you can gently sand the hole in the wheel or you can very gently change the scale of the axle.stl file when cutting in a slicer (change the scale of the element only for horizontal, the vertical scale should remain at 1:1). We have designed a special wheel and axle assembly tool, you can print it and use it to make your work easier.
  • If the handbrake lever gets stuck frequently, you can sand the surface it is in contact with. In addition, you can shorten the lever element a little where it contacts the brakes.

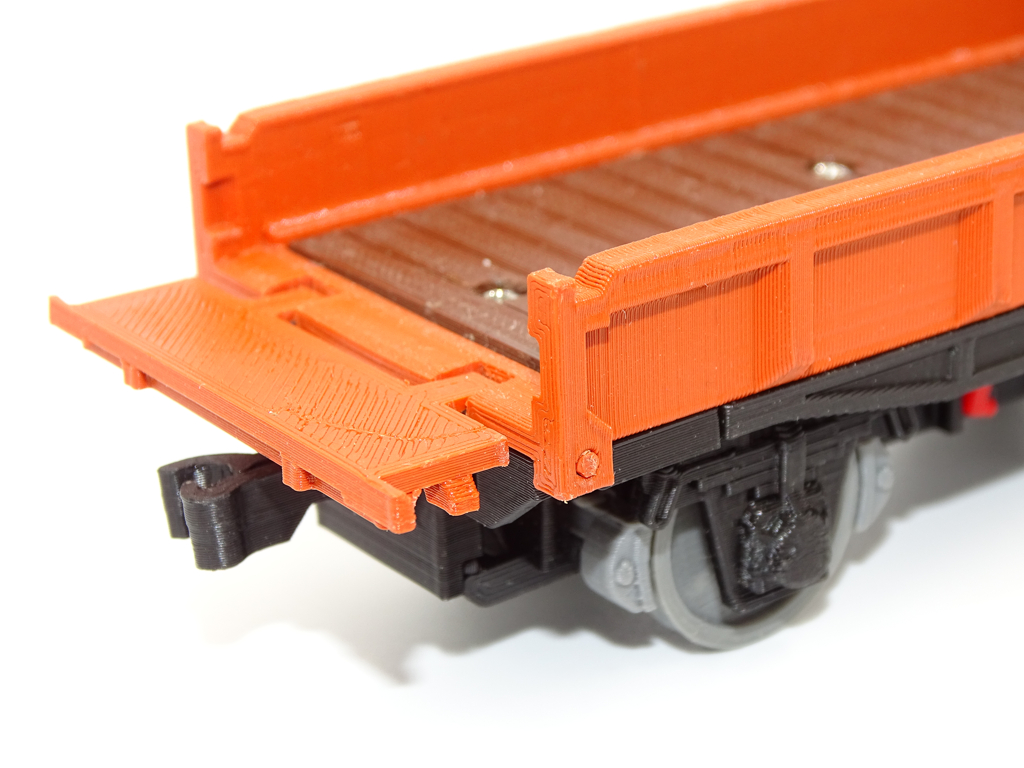

  • Use pieces of filament 1.75 mm to attach front hatches.
Backward compatibility

On June 26, 2022, due to the adaptation of trains to run on rails, the method of mounting couplers was changed. To enable connection of older wagons with newer ones, the new version of the coupler-automatic.stl and coupler-automatic-cotter.stl files should be printed and installed in older wagons. (files are available in the free locomotive model). You can also turn all couplers on older cars upside down, but this is not recommended - trains running on the tracks will not fit well into the turns.

Assembly manual movie

Click to see assembly manual on Youtube.
You can pause the movie and skip frames using "<" and ">" buttons from your keyboard.

License

After purchase files you can:
  • print an unlimited number of models,
  • modify and print modified files,
  • print models for a gift,
  • use printed models for free education.
You can not:
  • use models for earn money,
  • sell printed models,
  • sell any stl files (original or modified),
  • publish or distribute any stl files.
